| Place of Origin: | China |
|---|---|
| Model Number: | YE-63 ( 0-5 psi) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner paper box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Product Name: | Capsule Pressure Gauge | Connection: | 1/8", 1/4" NPT/BSP/BSPT Or Made According To Customers' Request |
|---|---|---|---|
| Mount: | Lower Mount | Face Dial: | 2.5", 3" Or 4" |
| Pointer: | Zero Adjustment | Setting: | With Zero Adustment Setting |
| Range:: | 0-5 Psi | Accuracy: | 1.6% |
| High Light: | 5psi Capsule Pressure Gauge,1/4" NPT Capsule Pressure Gauge,1.6% accuracy low pressure air gauge |
||

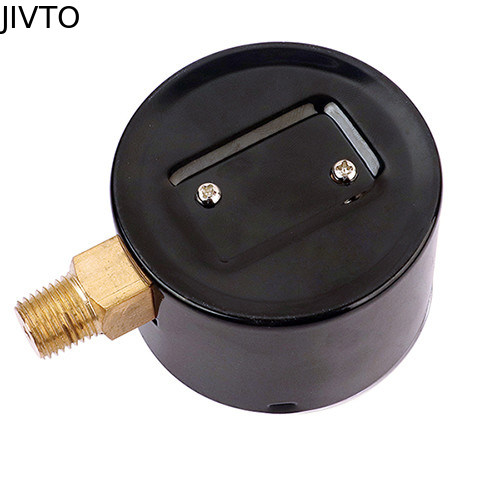

2-1/2 Capsule low Pressure Gauge,0-5 psi ,1/4 NPT lower mount, safety glass window, steel case and brass internal
The gauge is used for measuring micro pressure of air, gas or liquid which dose not corrode copper alloy. The measuring range covers from vacuum to 15 psi.
Features:
- Range: 0-5 psi
- With zero point adjustment setting
- 1/4 NPT lower mount
- Steel case
- PC window
- Brass internal
- Dial: 2-1/2"
- Opitional: lead free brass internal
|
Product name |
Capsule pressure gauge |
| Application | It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy. |
| Face dia | 2.5", 3" , 4" |
| Case | black painted steel or chromed steel |
| Connetion & socket | brass |
| Capsule | copper alloy |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | acrylic |
| Range | Vacuum, compound, 0-15 psi |
| Mount | lower mount |
| Setting | zero adustment setting |
| Accuracy | ±1.6% |
