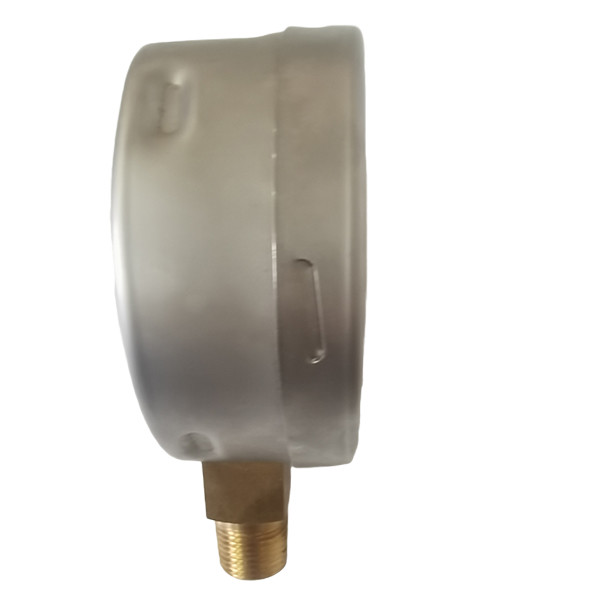

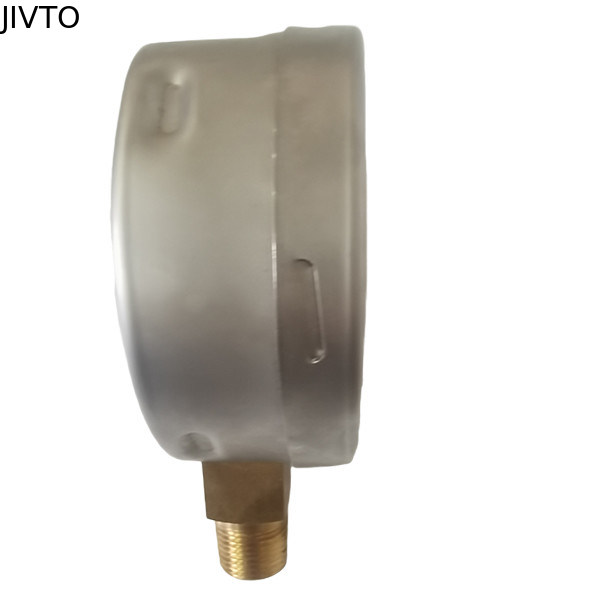

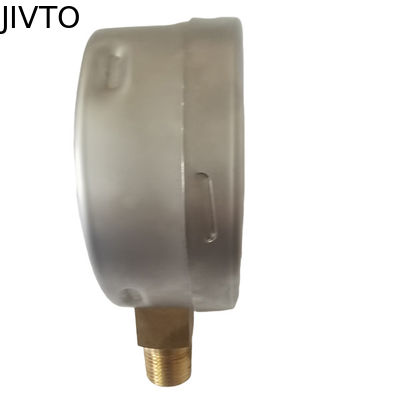

4" 250mbar Capsule Low Pressure Gauge

Basic Information
Place of Origin: China
Model Number: YE-100(0-250 mbar )
Minimum Order Quantity: 500 pcs
Price: Negotiable
Packaging Details: Inner paper box for each pressure gauge
Delivery Time: 20-40 work days
Payment Terms: T/T, L/C
Detail Information
Product Name: Capsule Pressure Gauge Connection: 3/8", 1/2" NPT/BSP/BSPT Or Made According To Customers' Request
Mount: Lower Mount Face Dial: 4"
Pointer: Zero Adjustment Case: Stainless Steel
Connetion & Socket: Brass Capsule: Copper Alloy
High Light:

4'' 101.6mm Capsule Pressure Gauge


250mbar Capsule Pressure Gauge


3/8'' BSPT low pressure vacuum gauge

Product Description


4" Capsule low Pressure Gauge,0-250 mbar ,1/2 NPT lower mount, safety glass, stainless steel case and brass internal



For low pressure measurement in medical, industrial and scientific research applications.Mounting options include centre back, bottom connection and clamp fixing. Both metric and Imperial thread sizes are available.




- Range: -250-250 IWC

- With zero point adjustment setting

- 1/2 NPT lower mount

- Stainless steel case

- Stainless steel bayonet ring

- PC window

- Brass internal

- Dial: 4"

- Opitional: 1/2 BSP





Product name

Capsule pressure gauge
Application It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy.
Face dia  4"

stainless steel


Connetion & socket brass
Capsule copper alloy
Movement brass
Pointer and dial aluminum
Window glass
Range Vacuum, compound, 0-600 mbar
Mount lower mounting
Setting zero adustment setting
Accuracy ±1.6%



4" 250mbar Capsule Low Pressure Gauge 0


4" 250mbar Capsule Low Pressure Gauge 1
