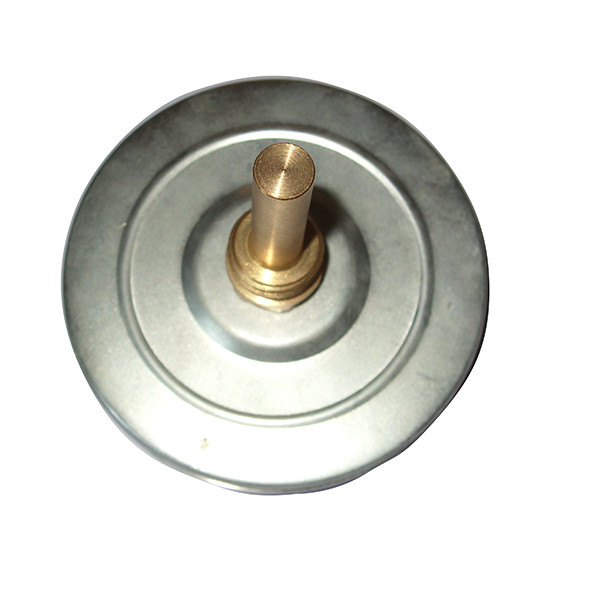

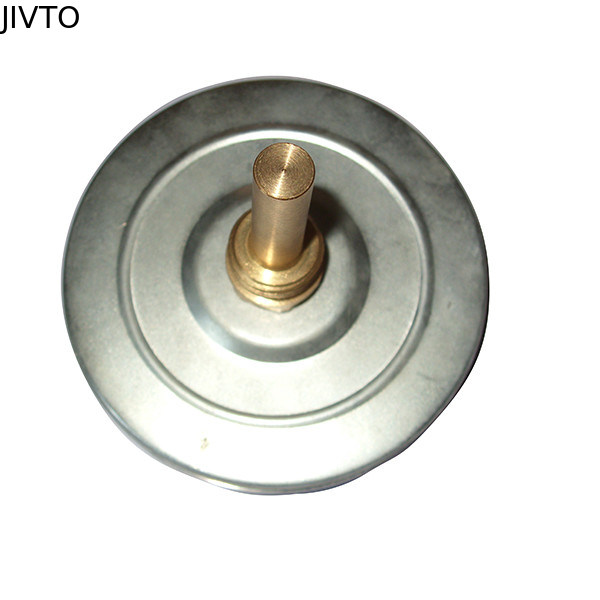

2'' 50MM 120C Bimetallic Coil Thermometer 1/4'' BSP Bimetal Temperature Gauge

Basic Information
Place of Origin: China
Model Number: JT-T-01
Minimum Order Quantity: 1000 pcs
Price: negotiable
Delivery Time: 20-40 works day
Payment Terms: T/T, L/C
Supply Ability: 300,000 pcs per month
Detail Information
Product Name: Bi Metal Thermometer Case Material: Steel
Thermowell Material: Brass Lens: Glass
Mount: Center Back Face Dia: 50mm, 60mm, 80mm, 100mm
Bezel: Chromed Plated Range: -50-600℃
High Light:

2'' 50MM bimetallic coil thermometer


120C Thermowel bimetallic coil thermometer


1/4'' BSP bimetal temperature gauge

Product Description


Bi-metal thermometer with thermowell, steel case, back connection with brass thermowell, 0-120℃


The temperature measurement of the bimetal thermometer is realized through the temperature sensing of the helical spring bimetal sheet made of bimetal inside the system.




- 4 inch Dial

- 4 inch length of stem

- Steel case

- Chromed Steel ring

- Brass stem

- Brass thermowell

- Range: 0-120℃

- Back mount

- Opitional: 2-1/2 inch , 3 inch dial




Product name  Bimetal thermometer
Nominal size(mm) 50,60, 80,100mm
Range -50-600℃
Accuracy 2.5%
Case material steel case
Bezel chrome plated
Lens Glass
Stem copper alloy
Stem diameter 6mm, 8mm, 10mm or made as request
Stem length 100 mm or made as request
Pointer black painted aluminum
Movement bimetallic coil
Inner copper alloy
Connection 1/4" or 1/2 NPT, BSP, BSPT or made as request
Mount center back mount





2'' 50MM 120C Bimetallic Coil Thermometer 1/4'' BSP Bimetal Temperature Gauge 0
