| Place of Origin: | China |
|---|---|
| Model Number: | YN-60ZBF ( 0-230 psi ) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner paper box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 400,000 pcs per month |
| Product Name: | Liquid Filled Pressure Gauge | Connection: | 1/4" NPT/BSP/BSPT Or Made According To Customers' Request |
|---|---|---|---|
| Liquid Filled: | Glycerine, Silicon Oil | Mount: | Back Mount |
| Case: | Stainless Steel | Connetion & Socket:: | Stainless Steel |
| Range: | Vacuum, Compound, 15,000 Psi | Accuracy: | 2.5% |

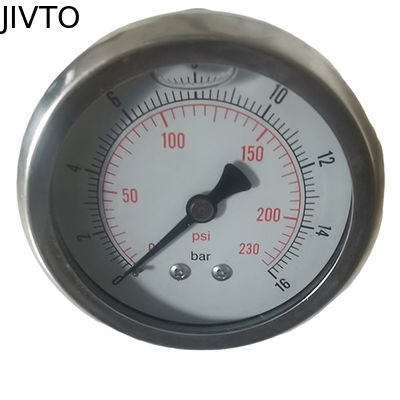

2-1/2 inch liuqid fillled Pressure Gauge, glycerine, silicone oil, stainless steel, 0-230psi/bar, 1/4 BSP back mount,
The gauge is used for measuring pressure of air, gas or liquid which dose not corrode copper alloy. It used for measuring media pressure with vibration or pulsation. The measuring range can covers from Vacuum to 15,000 psi.
Features:
- Stainless steel case
- Stainless steel internal
- Aluminum pointer
- 1/4 NPT back mount
- Dial: 2-1/2"
- Opitinal: 2"
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 1-1/2", 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | Stainless steel |
| Movement | Stainless steel |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Back mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
