1/4 BSP 6000 Psi 200℃ Multi Instruments Manifolds Two Valve Manifold PTFE

Basic Information
Place of Origin: China
Model Number: JT-V-07
Minimum Order Quantity: 100
Price: Negotiable
Delivery Time: 10-30 works day
Payment Terms: T/T, L/C
Supply Ability: 100.000 pcs per month
Detail Information
Product Name: Two-valve Manifold Inlet/process: 1/2 Female NPT, BPS, BSPT Or Made As Requestion
Outlet/instrument: 1/4 Female NPT, BPS, BSPT Or Made As Requestion Test/Vent: 1/4 Female NPT Or Made As Request
Material: Stainless Steel Max. Working Pressure: 6000 Psi
Max. Working Temperature: 200℃ Gasket/Packing: PTFE OR Graphite
Media: Oil, Gas, Water
High Light:

6000 Psi multi instruments manifolds

,

200℃ multi instruments manifolds

,

1/4 BSP two valve manifold PTFE


Product Description

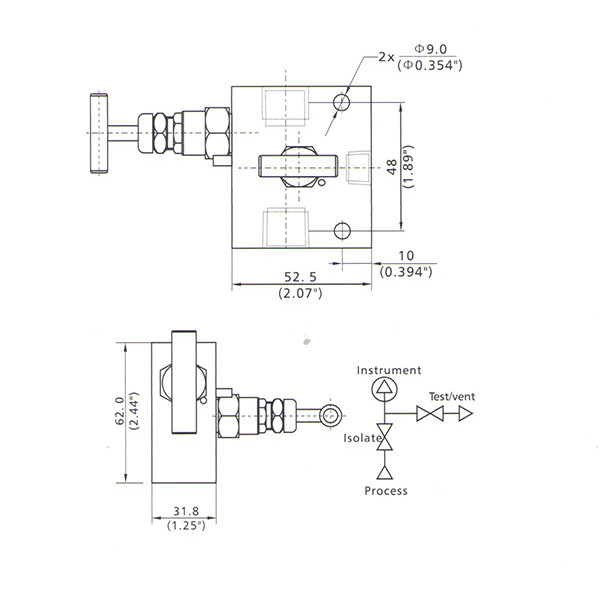

Instrument manifold, gauge valve, two-valve manifold, stainless steel, max. working pressure 6000 psi





Two-valves contains an isolation valve and a vent valve, calibration and testing.



Features:



- Material: Stainless steel



- Max. working temperature: 200℃



- Max. working pressure gauge: 6000 psi



- Inlet / process: 1/2 female NPT



- Outlet / instrument: 1/2 female NPT



- Gasket / packing: PTFE OR Graphite





Material stainless steel
Max. working temperature 200℃
Max. working pressure  6000 psi
Inlet/process 1/2 female NPT, BPS, BSPT or made as requestion
Outlet/instrument 1/2 female NPT, BPS, BSPT or made as requestion
Test/Vent 1/4 female NPT
Gasket/Packing PTFE OR Graphite
Seat/seal material PTFE OR Graphite



1/4 BSP 6000 Psi 200℃ Multi Instruments Manifolds Two Valve Manifold PTFE 0
