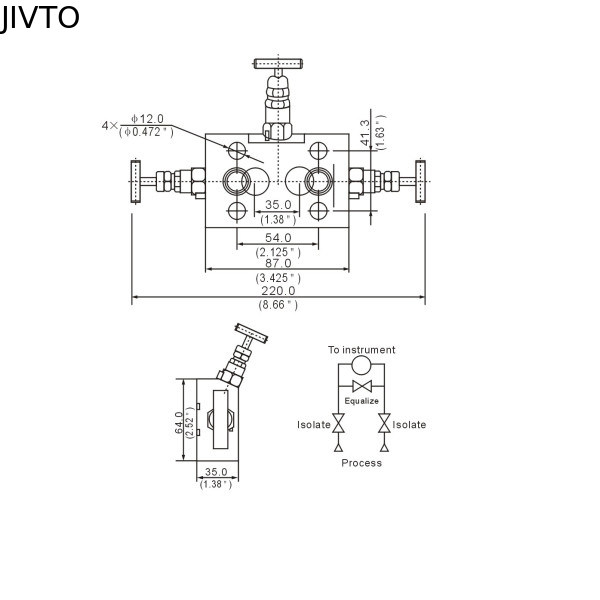

Three Valve Instrument Manifold Valve

Basic Information
Place of Origin: China
Model Number: JT-V-09
Minimum Order Quantity: 100
Price: Negotiable
Delivery Time: 10-30 works day
Payment Terms: T/T, L/C
Supply Ability: 100.000 pcs per month
Detail Information
Product Name: Three-valve Manifold Inlet/process: 1/2 Female NPT, BPS, BSPT Or Made As Requestion
Outlet/instrument: Flange Material: Stainless Steel
Max. Working Pressure: 6000 Psi Max. Working Temperature: 200℃
Gasket/Packing: PTFE OR Graphite Media: Oil, Gas, Water
High Light:

200C Instrument Manifold Valve


6000psi Instrument Manifold Valve


1/2 female BPS three valve manifold

Product Description


Instrument manifold, gauge valve, three-valve manifold, stainless steel, max. working pressure 6000 psi




Three-valves contains an isolation valves and a balancing valve.




- Material: Stainless steel


- Max. working temperature: 200℃


- Max. working pressure gauge: 6000 psi


- Inlet / process: 1/2 female NPT


- Outlet / instrument: flange


- Gasket / packing: PTFE OR Graphite



Material stainless steel
Max. working temperature 200℃
Max. working pressure  6000 psi
Inlet/process 1/2 female NPT, BPS, BSPT or made as requestion
Outlet/instrument flange
Gasket/Packing PTFE OR Graphite
Seat/seal material PTFE OR Graphite


Three Valve Instrument Manifold Valve 0
