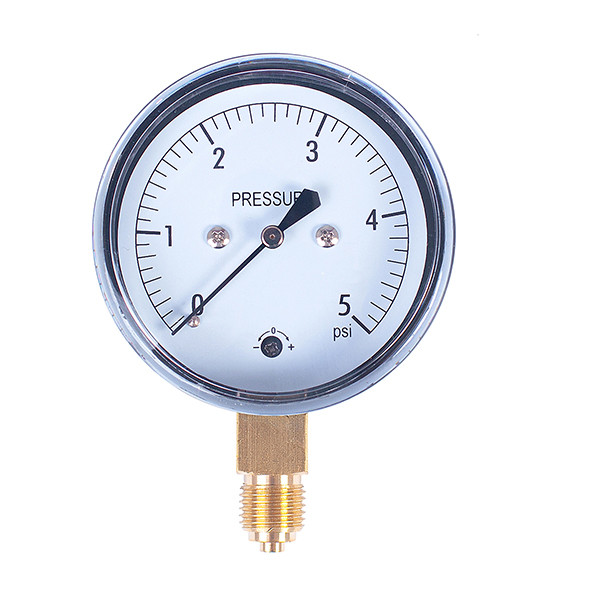

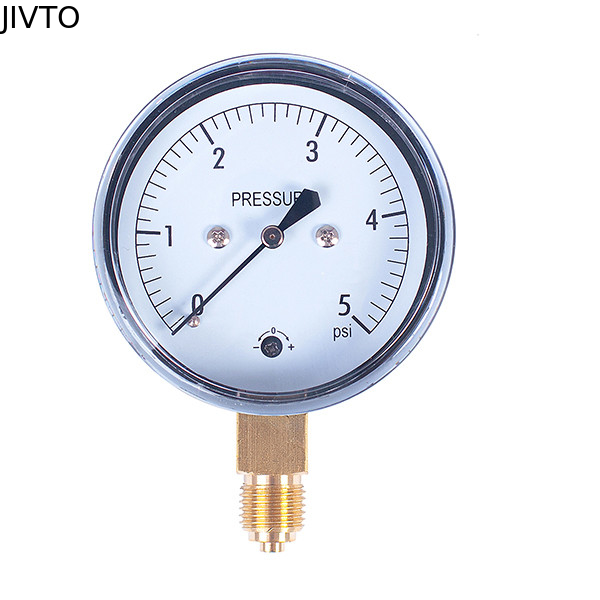

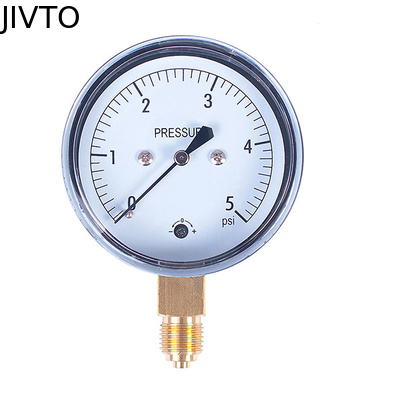

Low Pressure Vacuum 100MM 4in 5 Psi Low Pressure Gauge 1/8 BSPT

Basic Information
Place of Origin: China
Model Number: YE-63 ( 0-5 psi, BSP )
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: Inner paper box for each pressure gauge
Delivery Time: 20-40 work days
Payment Terms: T/T, L/C
Detail Information
Product Name: Capsule Pressure Gauge Connection: 1/8", 1/4" NPT/BSP/BSPT Or Made According To Customers' Request
Mount: Lower Mount Face Dial: 2.5", 3" Or 4"
Pointer: Zero Adjustment Setting: With Zero Adustment Setting
Range:: 0-5 Psi Accuracy: 1.6%
High Light:

100MM 4in Low Pressure Gauge

,

5psi Black Low Pressure Gauge

,

low pressure vacuum gauge 1/8 BSPT


Product Description



2-1/2 Capsule low Pressure Gauge,0-5 psi ,1/4 BSP lower mount, safety glass window, steel case and brass internal



Suitable for measuring gaseous media both corrosive and non-corrosive. Used to measure natural gas pressure as well air flow indications and leak detection. The measuring range covers from vacuum to 5 psi.



Features:

- Range: 0-5 psi

- With zero point adjustment setting

- 1/4 BSP lower mount

- Steel case

- PC window

- Brass internal

- Dial: 2-1/2"

- Opitional: 1/4 NPT





Product name

Capsule pressure gauge
Application It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy.
Face dia 2.5", 3" , 4"
Case black painted steel or chromed steel
Connetion & socket brass
Capsule copper alloy
Movement brass
Pointer and dial aluminum
Window acrylic
Range Vacuum, compound, 0-15 psi
Mount lower mount
Setting zero adustment setting
Accuracy ±1.6%





Low Pressure Vacuum 100MM 4in 5 Psi Low Pressure Gauge 1/8 BSPT 0

Low Pressure Vacuum 100MM 4in 5 Psi Low Pressure Gauge 1/8 BSPT 1Low Pressure Vacuum 100MM 4in 5 Psi Low Pressure Gauge 1/8 BSPT 2Low Pressure Vacuum 100MM 4in 5 Psi Low Pressure Gauge 1/8 BSPT 3
