| Place of Origin: | China |
|---|---|
| Model Number: | Y-100 ( 0-230 psi ) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner box for each pressure gauge |
| Delivery Time: | 30-50 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300,000 pcs per month |
| Product Name: | General Pressure Gauge | Face Size: | 4",6" |
|---|---|---|---|
| Connection: | 3/8", 1/2" NPT/BSP/BSPT Or Made As Request | Mount: | Back Mount |
| Case: | Black Painted Steel | Pointer: | Black Painted |
| Window: | Glass Glass | Ring: | Black Painted Steel |
| Connetion & Socket: | Brass | Bourdon Tube: | Copper Alloy |
| Pointer And Dial: | Aluminum | Color: | Black |
| Accuracy: | 1.6% | Range: | Vacuum, Compound, 0-10,000 Psi |
| High Light: | 16Bar General Pressure Gauges,4 Inch 100mm General Pressure Gauges 101.6mm,3/8" NPT pressure gauge Black painted |
||

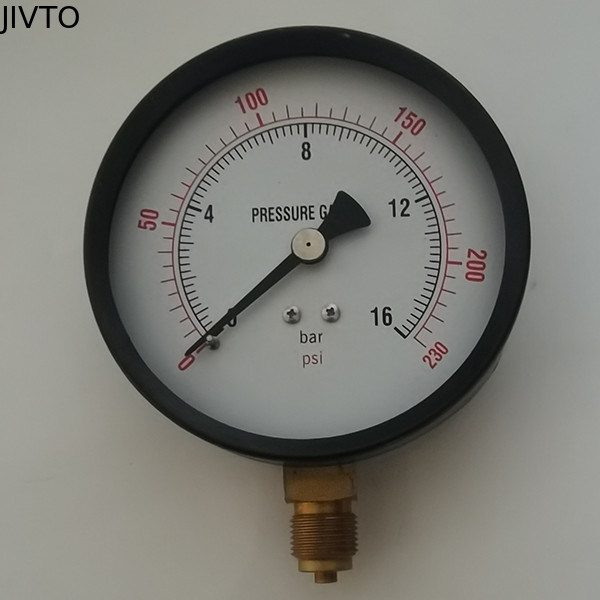

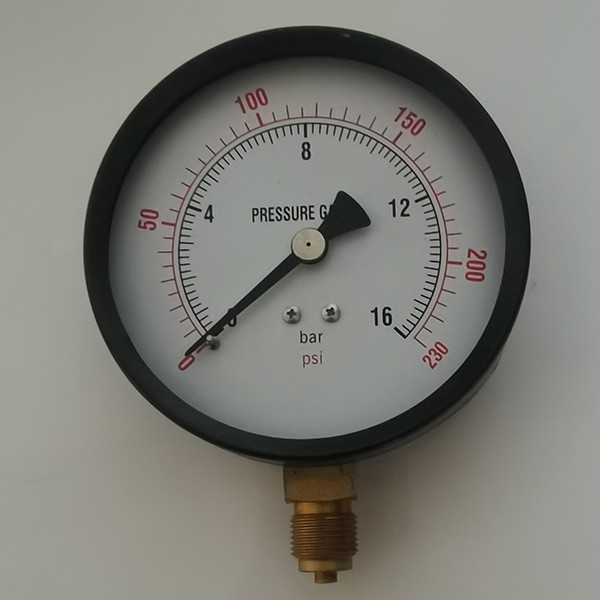

230 Psi 4 Inch Face plate General Pressure Gauges 230 Psi 16 Bar 3/8'' NPT
The gauges is used for measuring pressure of air, gas or liquid which dosen't corrode copper alloy. The range covers 0-230 psi.
Features:
- Range: 0-230 psi
- 3/8 NPT lower mount
- Steel case
- Steel ring
- Brass internal
- Glass window
- Dial: 4"
- Opitional: 1/2 BSP, 1/2 NPT
| Product name | General pressure gauge |
| Aplication | It can be used for measuring pressure of air, gas or liquid which doesn't corrode copper alloy. |
| Face dia | 4" |
| Case | black painted steel |
| Ring | black painted steel |
| Connetion & socket | brass |
| Bourdon tube | copper alloy |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-10,000 psi |
| Mount | bottom connection |
