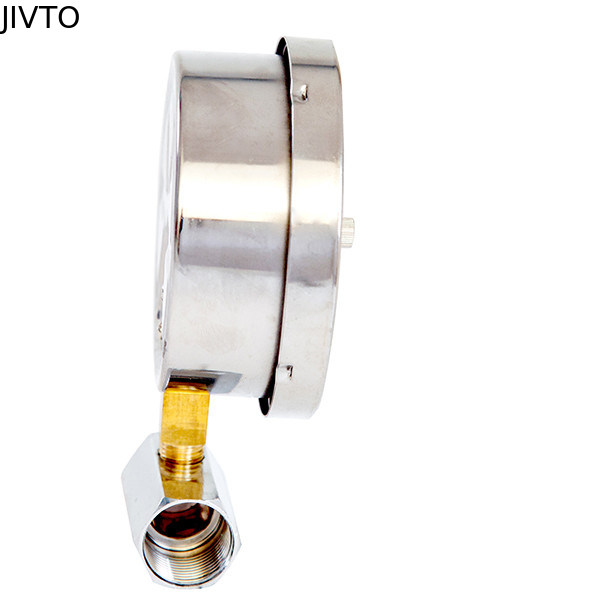

3/8"NPT Valve 4 Inch 10cm Capsule Pressure Gauge 5 Psi SS Case

Basic Information
Place of Origin: China
Model Number: YE-100 (0-5psi , with valve )
Minimum Order Quantity: 500 pcs
Price: Negotiable
Packaging Details: Inner paper box for each pressure gauge
Delivery Time: 20-40 work days
Payment Terms: T/T, L/C
Supply Ability: 300,000 pcs per month
Detail Information
Product Name: Capsule Pressure Gauge With Valve Connection: 3/8", 1/2" NPT/BSP/BSPT Or Made According To Customers' Request
Mount: Lower Mount Face Dial: 4"
Pointer: Zero Adjustment Spare Parts: With Valve
Connetion & Socket: Brass Capsule: Copper Alloy
High Light:

4 Inch 10cm Capsule Pressure Gauge


Capsule Pressure Gauge 5psi


3/8"NPT valve pressure gauge SS Case

Product Description

4 Capsule low Pressure Gauge with valve, 0-5 psi ,1/2 NPT lower mount, safety glass, steel case and brass internal



Capsule  pressure gauge is designed for accurate measuring on low pressure systems of gas, water, air, or any media which are not corrosive or oxidizing to copper alloy parts.The gauge has a calibration screw to adjust the pointer if necessary. The measuring range is 0 to 5 psi.




- Range: 0-5 psi

- With zero point adjustment setting

- With valve (3/4 NPT female connection, 1/8 NTP male vent connection )

- Steel case

- PC window

- Brass internal

- Dial: 4"

- Opitional: 2-1/2 inch



Product name

Capsule pressure gauge with valve
Application It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy.
Face dia 4"
Case Chromed steel
Connetion & socket brass
Capsule copper alloy
Movement brass
Pointer and dial aluminum
Window acrylic
Range Vacuum, compound, 0-15 psi
Mount bottom connection ( lower mount)
Setting zero adustment setting
Accuracy ±1.6%



3/8"NPT Valve 4 Inch 10cm Capsule Pressure Gauge 5 Psi SS Case 0



3/8"NPT Valve 4 Inch 10cm Capsule Pressure Gauge 5 Psi SS Case 1
