Lower Mount 63MM 10000Psi Electric Contact Pressure Gauges 1/2" BSP

Basic Information
Place of Origin: China
Model Number: YXC-100ZT (0-5800 PSI )
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: Inner box for each pressure gauge
Delivery Time: 20-40 work days
Payment Terms: T/T, L/C
Supply Ability: 300,000 pcs per month
Detail Information
Product Name: Electric Contact Pressure Gauge Size: 2-1/2", 4"
Range: Vacuum, Compound, 0-10,000 Psi Accuracy: 1.6%
Connection: 3/8", 1/2" NPT/BSP/BSPT Etc. Case: Black Painted Steel
Pointer: Black Painted Window: Safety Glass
Flange: With Flange
High Light:

63MM Electric Contact Pressure Gauges

,

10000Psi Electric Contact Pressure Gauges

,

lower mount pressure gauge 1/2" BSP


Product Description

4 inch Electric contact Pressure Gauge, 0-5800 PSI/bar ,back Mount, Black painted Steel case and Brass Connection



Pressure gauges are widely used in mining, hydraulic,agricultural and  other industries. The meausuring range covers 0-58,000 psi.



Features:

- Range: 0-5800 psi

- With front flange

- 1/2 NPT back mount

- Steel case

- Brass internal

- PC window

- Dial: 4"

- Opitional:1/2 BSP





Product name Electric contact pressure gauge with flange
Application It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia 2-1/2", 4"
Case black painted steel
Ring black painted steel
Connetion & socket brass
Bourdon tube copper alloy
Pointer and dial aluminum
Window safety glass
Range Vacuum, compound, 0-10,000 psi
Mount back mount

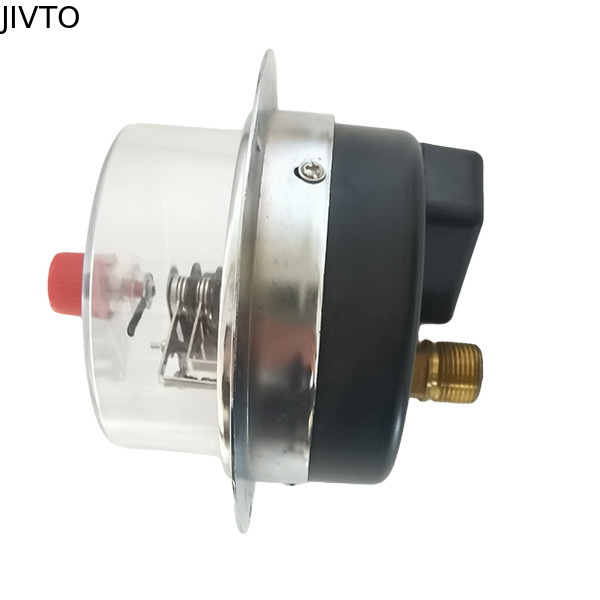

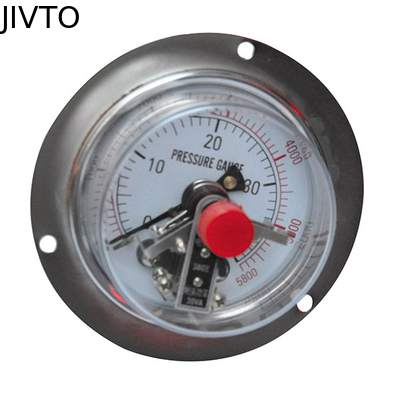

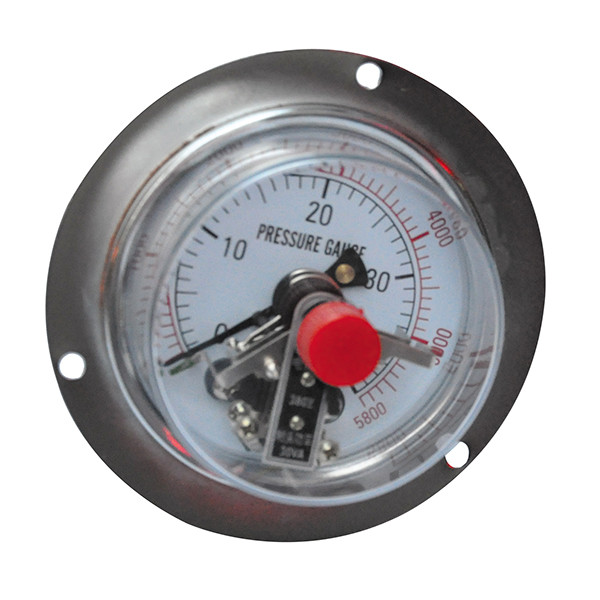

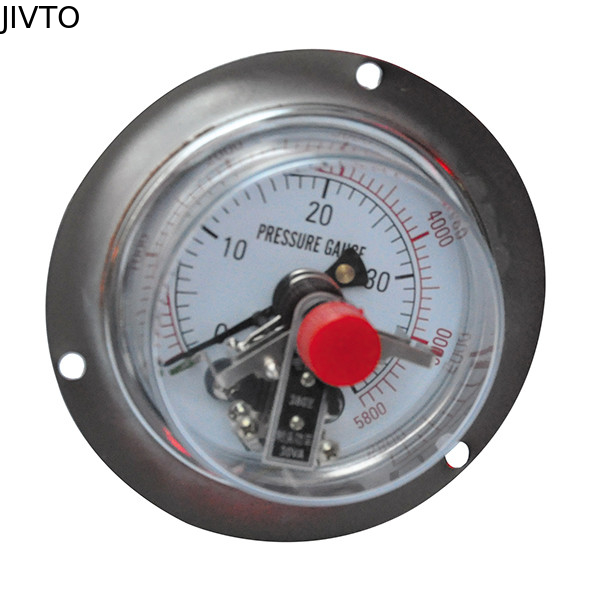

Lower Mount 63MM 10000Psi Electric Contact Pressure Gauges 1/2" BSP 0

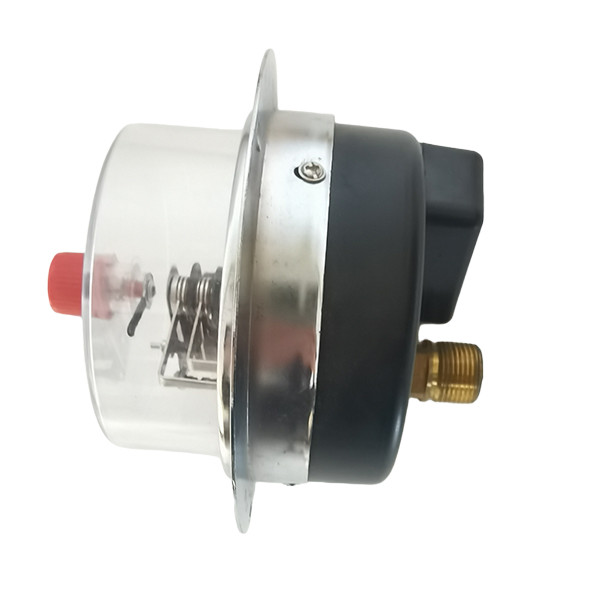

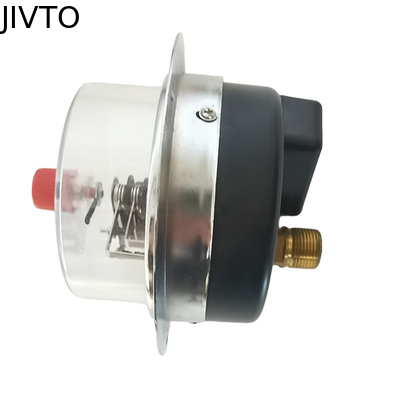

Lower Mount 63MM 10000Psi Electric Contact Pressure Gauges 1/2" BSP 1
