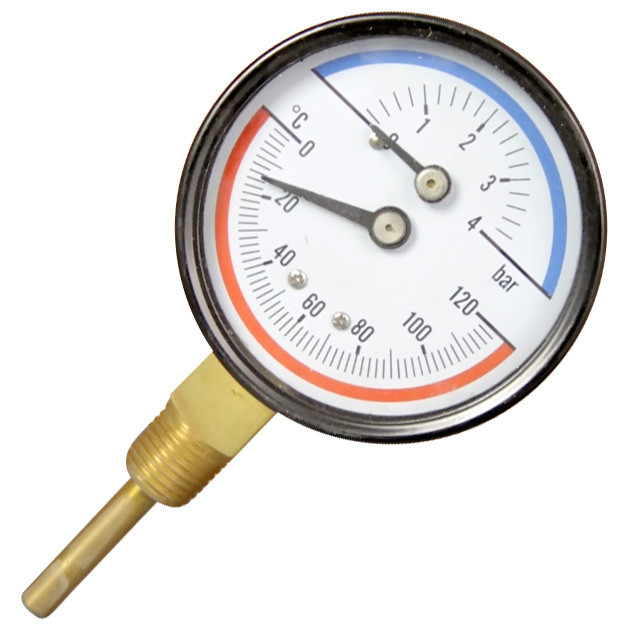

Bottom 2.5'' 63MM Pressure Temperature Gauges 16 Bar 1/2 BSPT

Basic Information
Place of Origin: China
Model Number: MP-003
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Inner box for each thermomanometer
Delivery Time: 20-40 works day
Payment Terms: T/T, L/C
Supply Ability: 300,000 pcs per month
Detail Information
Product Name: Thermomanometer Case Material: Black Painted Steel Or ABS
Mount: Back Face Dia: 63mm, 80mm, 100mm
Connecton Material: Brass Range: 0-4 Bar, 0-6 Bar, 0-10 Bar, 0-16 Bar/0-120 ℃ , 0-160 ℃
Movement: Bimetallic Coil Pointer: Black Painted Aluminum
High Light:

2.5'' 63MM Pressure Temperature Gauges


Pressure Temperature Gauges 16bar


bottom pressure gauge 1/2 BSPT

Product Description

Thermomanometer,black painted steel,brass internal, bottom connection, pressure temperature gauge,0-4 bar/0-120 ℃


Pressure,temperature measurement of gas and liquid which has on corrosive effects on copper, copper alloy.



- Range: 0-4 bar/ 0-120 ℃

- Dial: 80 mm

- Bottom connection

- Steel case

- Brass internal

- Opitional: 63mm, 100 mm


Product name Thermomanometer
Nominal size(mm) 63,80mm, 100mm
Range 0-4 bar, 0-6 bar, 0-10 bar, 0-16 bar/0-120 ℃ , 0-160 ℃
Accuracy 1.6%
Case material black painted steel or ABS
Bezel black painted steel
Connecton material brass
Pointer black painted aluminum
Movement bimetallic coil
Inner copper alloy
Connection 1/2 NPT, BSP, BSPT or made as request
Mount lower mount
Window  glass


Bottom 2.5'' 63MM Pressure Temperature Gauges 16 Bar 1/2 BSPT 0
