| Place of Origin: | China |
|---|---|
| Model Number: | TM-005 |
| Minimum Order Quantity: | 1000 pcs |
| Price: | negotiable |
| Packaging Details: | Inner box for each thermomanometer |
| Delivery Time: | 20-40 works day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300,000 pcs per month |
| Product Name: | Capillary Thermomanometer | Case Material: | ABS |
|---|---|---|---|
| Mount: | Back | Face Dia: | 52mm |
| Capillary Length: | 1 M Or Made As Request | Connecton Material: | Brass |
| Pointer: | Black Painted Aluminum | Movement: | Bimetallic Coil |
| Highlight: | 52mm Pressure Temperature Gauges,4bar Pressure Temperature Gauges,brass thread bimetallic coil thermometer |
||

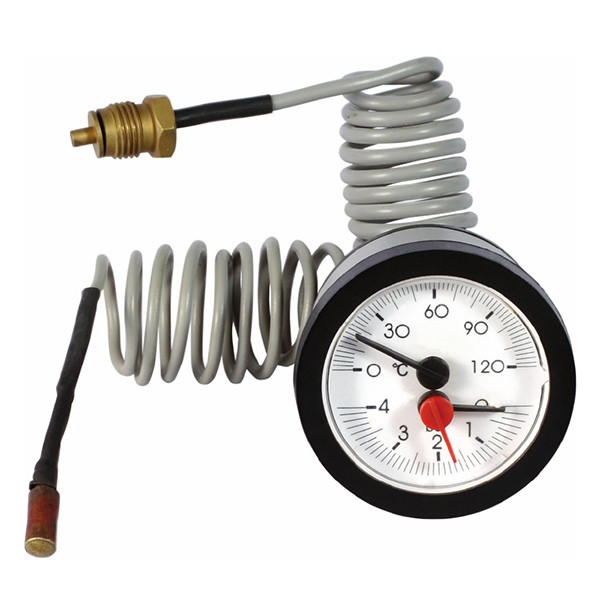

52 mm capillary thermomanometer,ABS black case, back connection, pressure temperature gauge,0-4 bar/0-120 ℃
For pressure and temperature measuring of gas, liquid which is not corrosive to brass.
Features:
- Range: 0-6 bar/ 0-120 ℃
- Dial: 52 mm
- Back connection
- ABS black case
- ABS black ring
- PC window
- Brass internal
- 1 m length of capillary
| Product name | capillary Thermomanometer |
| Nominal size(mm) | 52 |
| Range | 0-4 bar, 0-6 bar, 0-10 bar, 0-16 bar/0-120 ℃ , 0-160 ℃ |
| Accuracy | 2.5% |
| Case material | ABS |
| Connecton material | brass |
| Pointer | black painted aluminum |
| Movement | bimetallic coil |
| Inner | copper alloy |
| Capillary length |
1 m or made as request
|
| Mount | Back mount |
| Window | glass |
