| Place of Origin: | China |
|---|---|
| Model Number: | YXC-100 ( -76 cm Hg-10 bar ) |
| Minimum Order Quantity: | 500 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300,000 pcs per month |
| Product Name: | Electric Contact Pressure Gauge With Silicone Oil | Size: | 4" |
|---|---|---|---|
| Range: | Vacuum, Compound, 0-10,000 Psi | Accuracy: | 1.6% |
| Connection: | 3/8", 1/2" NPT/BSP/BSPT Etc. | Case: | Stainless Steel |
| Pointer: | Red Painted | Window: | Glass |
| Liquid: | Glycerine, Silicone Oil | ||
| High Light: | 9 Kg per CM2 Electric Contact Pressure Gauges,4 Inch 10cm Electric Contact Pressure Gauges,Liquid contact pressure gauge 3/8'' NPT |
||

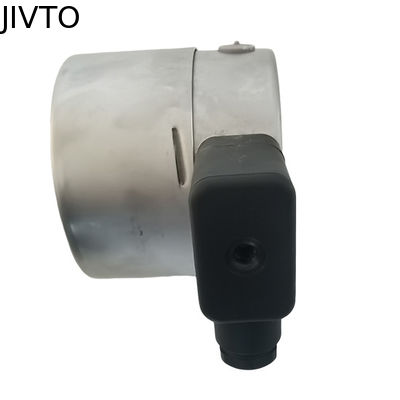

4 inch Electric contact Pressure Gauge, liquid, -76 CmHg-10bar ,Lower Mount, stainless steel case and internal
The gauges are filled with oil for vibrtion-proof indication,suitable for the adverse service conditions where sharp pulsation and vibration exist.
Features:
- Range: -76 CMHG-9 Kg/CM2
- 1/2 BSP lower mount
- Stainless steel bayonet case
- Stainless steel internal
- PC window
- Dial: 4"
- Opitional: 1/2 NPT
| Product name | Electric contact pressure gauge with silicone oil |
| Application | It can be used for measuring pressure of air, gas or liquid. |
| Face dia | 4" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket | stainless steel |
| Bourdon tube | stainless steel |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-10,000 psi |
| Mount | Lower mount |
