| Place of Origin: | China |
|---|---|
| Model Number: | YN-60 ( 0-100 psi ) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner paper box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 400,000 pcs per month |
| Product Name: | Liquid Filled Pressure Gauge | Connection: | 1/4" NPT/BSP/BSPT Or Made According To Customers' Request |
|---|---|---|---|
| Liquid Filled: | Glycerine, Silicone Oil | Mount: | Lower Mount |
| Case: | Stainless Steel | Connetion & Socket:: | Brass |
| Range: | Vacuum, Compound, 15,000 Psi | Accuracy: | 2.5% |
| High Light: | 1/4'' NPT bottom connection pressure gauge,bottom connection pressure gauge 2.5'' 6.3CM,glycerine filled pressure gauge 100psi |
||

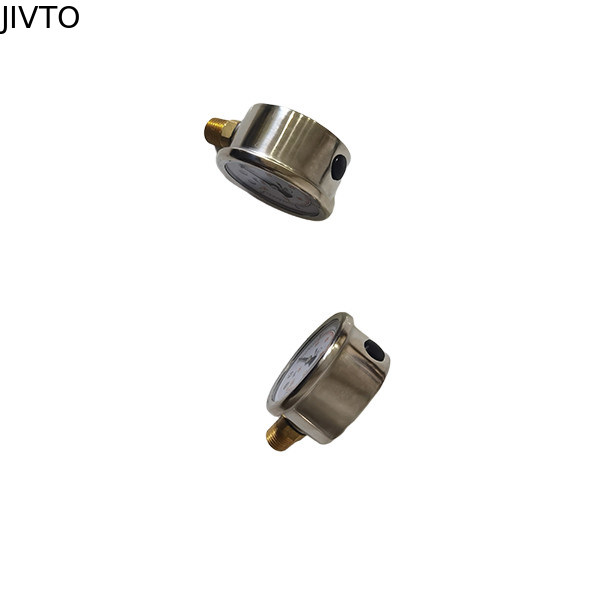

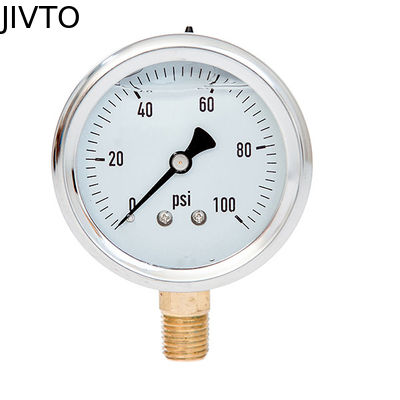

2-1/2 inch Pressure Gauge, liquid filled, 0-100 psi, 1/4 BSP lower mount, stainless steel case and brass internal
The gauge is used for measuring pressure of air, gas or liquid which dose not corrode copper alloy. It used for measuring media pressure with vibration or pulsation. The measuring range can covers from Vacuum to 15,000 psi.
Features:
- Filled with glycerine
- 100 pcs per carton
- Stainless steel case and brass internal
- Opitional: panel mount
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Lower mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
