| Place of Origin: | China |
|---|---|
| Model Number: | JT-V-03 |
| Minimum Order Quantity: | 100 |
| Price: | negotiable |
| Delivery Time: | 10-30 works day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100.000 pcs per month |
| Product Name: | Needle Valve | Spare Parts: | With Weld Nipple |
|---|---|---|---|
| Material: | Stainless Steel | Max. Working Pressure: | 6000 Psi |
| Max. Working Temperature: | 200℃ | Gasket/Packing: | PTFE OR Graphite |
| Madia: | Oil, Gas, Water | Structure: | Needle |
| High Light: | 4000Psi Instrument Manifold Valve,100 deg Instrument Manifold Valve,3 way manifold valve 1/2'' Female NPT |
||

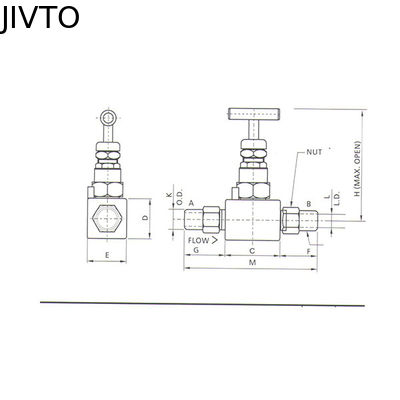

Instrument needle valve, Weld nipple, max. working pressure 6000 psi ,stainless steel
Female tube fittings and NPT thread fittings are used for long-distance installation.
Needle valve manifold
Features:
- Material: Stainless steel
- Max. working temperature: 200℃
- Max. working pressure gauge: 6000 psi
- Inlet / process: 1/4 NPT female NPT
- Outlet / instrument: 1/4 female NPT
- Gasket / packing: PTFE OR Graphite
| Material | stainless steel |
| Max. working temperature | 200℃ |
| Max. working pressure | 6000 psi |
| Inlet | 1/4 male NPT, BPS, BSPT or made as requestion |
| Outlet | 1/4 female NPT, BPS, BSPT or made as requestion |
| Gasket/Packing | PTFE OR Graphite |
| Seat/seal material | PTFE OR Graphite |
