| Place of Origin: | China |
|---|---|
| Model Number: | JT-V-11 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Delivery Time: | 10-30 works day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100.000 pcs per month |
| Product Name: | Five-valve Manifolds | Inlet/process: | 1/2 Female NPT, BPS, BSPT Or Made As Requestion |
|---|---|---|---|
| Outlet/instrument: | Coplanar Flange | Test/Vent: | 1/4 Female NPT |
| Material: | Stainless Steel | Max. Working Pressure: | 6000 Psi |
| Max. Working Temperature: | 200℃ | Gasket/Packing: | PTFE OR Graphite |
| Media: | Oil, Gas, Water | ||
| High Light: | 200C 5 way valve manifold,6000psi 5 way manifold,5 valve manifold for differential pressure transmitter ODM |
||
Instrument manifold, gauge valve, five-valve manifolds, stainless steel, max. working pressure 6000 psi

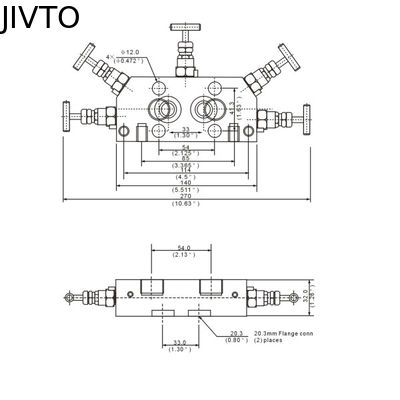

The size of the center hole 2-1/8" in (54mm) is convenient for the instrument calibrating with flange connection.
Five-valves contains two isolation valves and a balancing valve.and the two went valve, calibration and testing.
Features:
- Material: Stainless steel
- Max. working temperature: 200℃
- Max. working pressure gauge: 6000 psi
- Inlet / process: 1/2 NPT female NPT
- Outlet / instrument: Coplanar flange
- Gasket / packing: PTFE OR Graphite
| Material | stainless steel |
| Max. working temperature | 200℃ |
| Max. working pressure | 6000 psi |
| Inlet/process | 1/2 female NPT, BPS, BSPT or made as requestion |
| Outlet/instrument | Coplanar flange |
| Test/Vent | 1/4 Female NPT |
| Gasket/Packing |
|
| Seat/seal material | PTFE OR Graphite |
