| Place of Origin: | China |
|---|---|
| Model Number: | YE-63 ( 0-3 psi) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner paper box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Product Name: | Capsule Pressure Gauge | Connection: | 1/8", 1/4" NPT/BSP/BSPT Or Made According To Customers' Request |
|---|---|---|---|
| Mount: | Lower Mount | Face Dial: | 2.5", 3" Or 4" |
| Pointer: | Zero Adjustment | Setting: | With Zero Adustment Setting |
| Range:: | 0-3 Psi | Accuracy: | 1.6% |
| High Light: | 3psi Capsule Pressure Gauge,2.5'' 63mm Capsule Pressure Gauge,back mount gauge 1/4'' NPT |
||

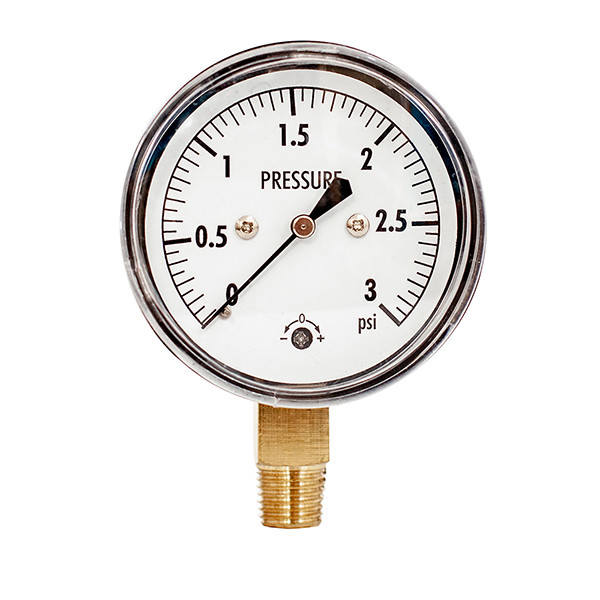

Black Stainless Steel Case 2.5'' Inch Capsule Mbar Pressure Gauge 3 Psi 1/4 NPT
Capsule pressure gauge mainly used to measure mirco pressure and negative pressure of liquid or gas that has no corrosion to copper alloy.The measuring range covers from vacuum to 3 psi.
Features:
- Range: 0-3 psi
- With zero point adjustment setting
- 1/4 NPT lower mount
- Steel case
- PC window
- Brass internal
- Dial: 2-1/2"
- Opitional: 1/4 BSP, 1/4 BSPT
|
Product name |
Capsule pressure gauge |
| Application | It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy. |
| Face dia | 2.5", 3" , 4" |
| Case | black painted steel or chromed steel |
| Connetion & socket | brass |
| Capsule | copper alloy |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | acrylic |
| Range | Vacuum, compound, 0-15 psi |
| Mount | lower mount |
| Setting | zero adustment setting |
| Accuracy | ±1.6% |
| Ambient |
－40℉ to 140℉ (-40℃ to 60℃) |
