Product Name: | General Pressure Gauge | Size: | 1-1/2",2", 2-1/2",3" |
---|---|---|---|
Range: | 0-15 Psi | Accuracy: | 2.5% |
Connection: | 1/8", 1/4" NPT/BSP/BSPT Or Made As Request | Case: | Black Painted Steel |
Pointer: | Black Painted Aluminum | Window: | Glass Glass |
High Light: | 2" 50mm Water Pressure Gauges,15Psi Water Pressure Gauges,black stainless pressure gauge 1/8 BSPT |

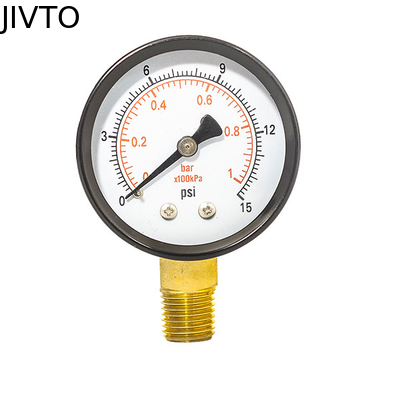

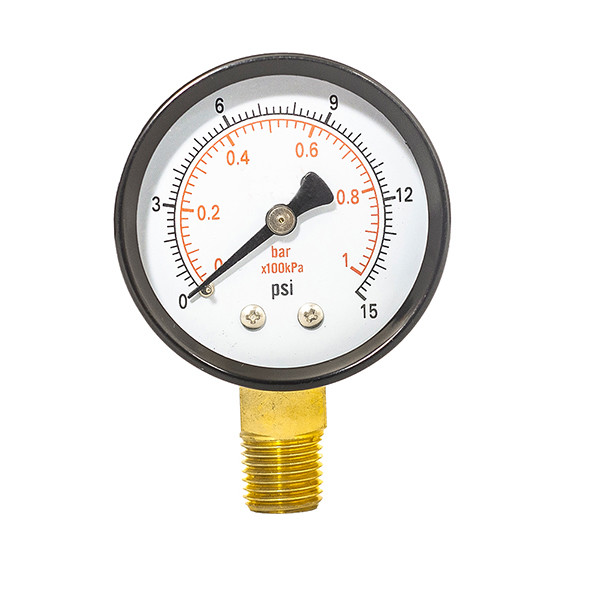

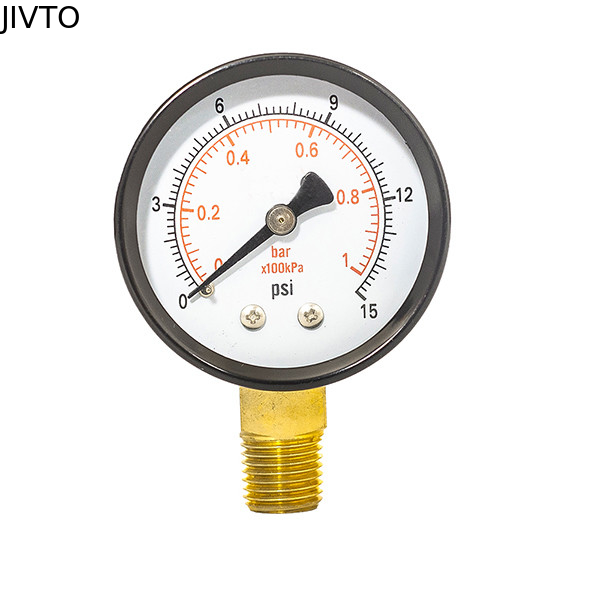

2" General Pressure Gauge,0-15 psi/bar,1/4 NPT Lower Mount, Black painted Steel case and Brass Connection
Application:
The general pressure gauge is suitable for measuring the pressure of the liquid, steam, and gas without explosion hazard, non-crystallizing, non-solidifying, and non-corrosive to copper and copper alloys.The measuring range covers 0-15 psi.
Features:
- Range: 0-1 bar
- 1/4 NPT lower mount
- Steel case
- Brass internal
- Dial: 2"
- Opitional: 2-1/2"
Product name | General pressure gauge |
Aplication | It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy. |
Face dia | 1-1/2",2",2-1/2", 3" |
Case | black painted steel |
Ring | black painted steel |
Connetion & socket | brass |
Bourdon tube | copper alloy |
Pointer and dial | aluminum |
Window | glass |
Range | Vacuum, compound, 0-6000 psi |
Mount | lower mount |
