| Place of Origin: | China |
|---|---|
| Model Number: | Y-50Z (0-160 psi ) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner box for each pressure gauge |
| Delivery Time: | 30-50 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300,000 pcs per month |
| Product Name: | General Pressure Gauge | Face Dia: | 1-1/2", 2",2-1/2" |
|---|---|---|---|
| Range: | 0-160 Psi | Accuracy: | 2.5% |
| Connection: | 1/4" NPT/BSP/BSPT Or Made As Request | Case: | Black Painted Steel |
| Pointer: | Black Painted | Window: | Glass Glass |
| High Light: | 63MM Bourdon Tube Manometer,160 Psi Bourdon Tube Manometer,1/4 BSPT dial pressure gauge |
||

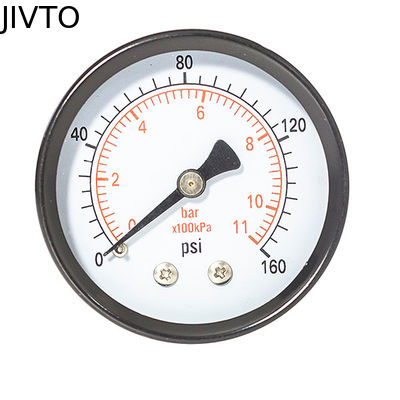

2 inch General Pressure Gauge, 0-160 psi/bar, 1/4 NPT central back Mount, black painted Steel case and Brass Connection
General purpose gauge for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks and air compressors.
- Range: 0-160 psi
- 1/4 NPT back mount
- Steel case
- Steel ring
- Brass internal
- Dial: 2"
- Opitional: lead free brass internal
| Product name | General pressure gauge |
| Aplication | It can be used for measuring pressure of air, gas or liquid which doesn't corrode copper alloy. |
| Face dia | 1-1/2", 2", 2-1/2" |
| Case | black painted steel |
| Ring | black painted steel |
| Connetion & socket | brass |
| Bourdon tube | copper alloy |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-6000 psi |
| Mount | back connection |
