| Place of Origin: | China |
|---|---|
| Model Number: | YN-60 ( 0-200psi ) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner paper box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 400,000 pcs per month |
| Product Name: | Liquid Filled Pressure Gauge | Connection: | 1/4" NPT/BSP/BSPT Or Made According To Customers' Request |
|---|---|---|---|
| Liquid Filled: | Glycerine, Silicone Oil | Mount: | Lower Mount |
| Case: | Stainless Steel | Connetion & Socket:: | Brass |
| Range: | 0-200 Psi | Accuracy: | 2.5% |
| High Light: | 6.3cm6.3cm 2in Liquid Filled Pressure Gauges,Liquid Filled Pressure Gauges 200Psi,lower back mount pressure gauge 1/4 BSPT |
||

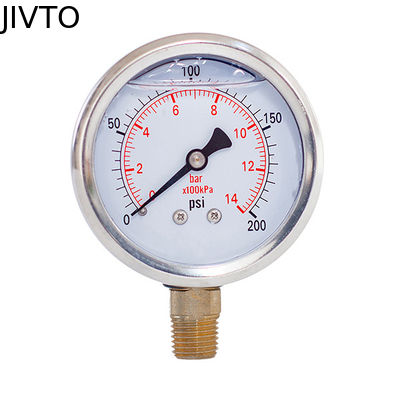

200 psi 2-1/2 Inch Silicone vacuum Filled Pressure Gauge 1/4 BSPT Lower Mount
This is crimped bezel construction.The measuring range is 0-200 psi .
Features:
- 2-1/2"
- Double scale: psi/ bar
- Filled with glycerine
- Crimp on bezel
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Lower mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
