| Place of Origin: | China |
|---|---|
| Model Number: | YN-60 ( 0-4000psi ) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner paper box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 400,000 pcs per month |
| Product Name: | Liquid Filled Pressure Gauge | Connection: | 1/4" NPT/BSP/BSPT Or Made According To Customers' Request |
|---|---|---|---|
| Liquid Filled: | Glycerine, Silicone Oil | Mount: | Lower Mount |
| Case: | Stainless Steel | Connetion & Socket:: | Brass |
| Range: | 0-4000 Psi | Accuracy: | 2.5% |
| High Light: | 4000psi Range Liquid Filled Pressure Gauges,2.5'' Inch Dial Liquid Filled Pressure Gauges,liquid dual scale pressure gauge 280bar |
||

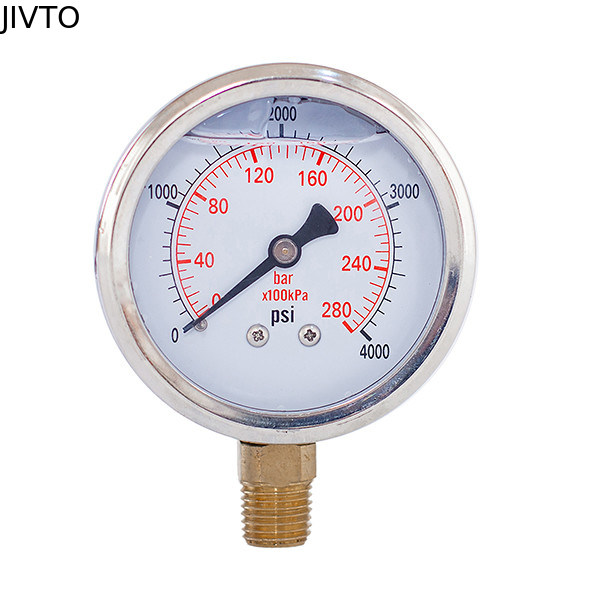

2-1/2 inch Pressure Gauge, glycerine, 0-4000 psi/bar/kpa, 1/4 BSP lower mount, stainless steel case and brass internal
Application:
-Use where harmful vibration and pulsation are present
-Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems
-Outdoor and severe ambient and process conditions
Features:
- Crimp on bezle
- 2.5" dia
- Lower mount
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Lower mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
