| Place of Origin: | China |
|---|---|
| Model Number: | YN-40 Z( -30 inHg-0 bar ) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner paper box for each pressure gauge |
| Delivery Time: | 20-40 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 400,000 pcs per month |
| Product Name: | Liquid Filled Pressure Gauge | Connection: | 1/4" NPT/BSP/BSPT Or Made According To Customers' Request |
|---|---|---|---|
| Liquid Filled: | Glycerine, Silicone Oil | Mount: | Back Mount |
| Case: | Stainless Steel | Connetion & Socket:: | Brass |
| Range: | -30 InHg-0 Bar | Accuracy: | 2.5% |
| High Light: | 1.5 inch dial liquid inside pressure gauge,-30 inHG liquid inside pressure gauge,1/4 BSPT connection back mount gauge |
||

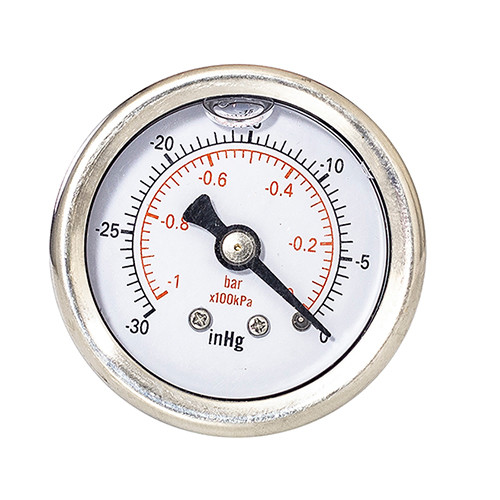

1-1/2 inch Pressure Gauge, glycerine, -30-0 bar/Kpa, 1/4 BSP back mount, stainless steel case and brass internal
The vibration-proof pressure gauge is applied to the occasion with dynamic load and vibration. The gauges can be used to measure the pressure of gas or liquid which can't corrode copper alloy. The measuring range is -30 inHg-0.
Features:
- Vacuum gauge
- Range: 0-30 inHg
- 1/4 NPT back mount
- Dial:1-1/2"
- Safety glass window
| Product name | Liquid filled vacuume gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 1-1/2",2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Back mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
