| Place of Origin: | China |
|---|---|
| Model Number: | Y-50 (0-4 bar) |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiable |
| Packaging Details: | Inner box for each pressure gauge |
| Delivery Time: | 30-50 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300,000 pcs per month |
| Product Name: | General Pressure Gauge | Size: | 1-1/2",2", 2-1/2",3" |
|---|---|---|---|
| Range: | 0-4 Bar | Accuracy: | 2.5% |
| Connection: | 1/8", 1/4" NPT/BSP/BSPT Or Made As Request | Case: | Black Painted Steel |
| Pointer: | Black Painted Aluminum | Window: | Glass Glass |
| High Light: | 4Bar General Pressure Gauges,38MM 1.5 Inch General Pressure Gauges,Dual Scale pressure gauge 1/4 BSP |
||

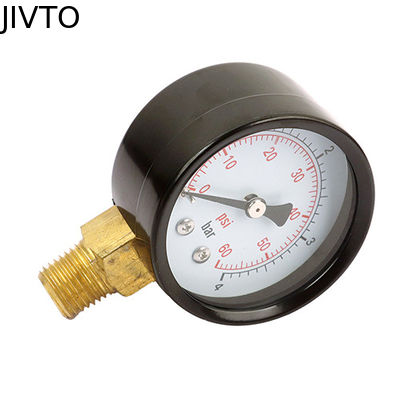

2" General Pressure Gauge,0-4 bar/psi,1/4 NPT Lower Mount, Black painted Steel case and Brass Connection
Application:
The pressure gauge can be used in Compressor, Filters, Regulators, Water Pumps, Paint Sprayers and other pressure related equipments.The measuring range covers 0-60 psi.
Features:
- Range: 0-4 bar
- 1/4 NPT lower mount
- Steel case
- Brass internal
- Dial: 2"
- Opitional: 1-1/2", 2-1/2"
| Product name | General pressure gauge |
| Aplication | It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy. |
| Face dia | 1-1/2",2",2-1/2", 3" |
| Case | black painted steel |
| Ring | black painted steel |
| Connetion & socket | brass |
| Bourdon tube | copper alloy |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-6000 psi |
| Mount | lower mount |
