| Place of Origin: | China |
|---|---|
| Model Number: | SS-M3-8F-COPFL |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Delivery Time: | 10-30 works day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100.000 pcs per month |
| Product Name: | Three-valve Manifold | Inlet/process: | 1/2 Female NPT |
|---|---|---|---|
| Outlet/instrument: | Coplanar Flange | Vent: | 1/4 Female NPT |
| Material: | Stainless Steel | Max. Working Pressure: | 6000 Psi |
| Max. Working Temperature: | 200℃ | Gasket/Packing: | PTFE OR Graphite |
| Media: | Oil, Gas, Water | ||
| High Light: | 1/2 npt Instrument Manifold Valve,200C three valve Instrument Manifold Valve,pressure transmitter manifold 6000PSI |
||

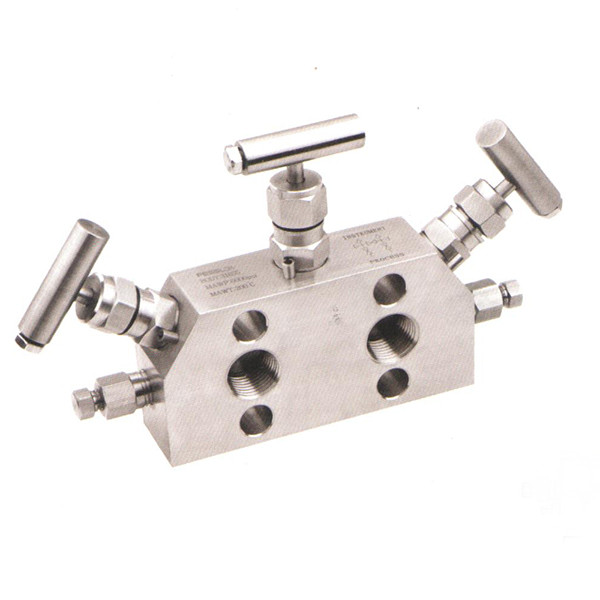

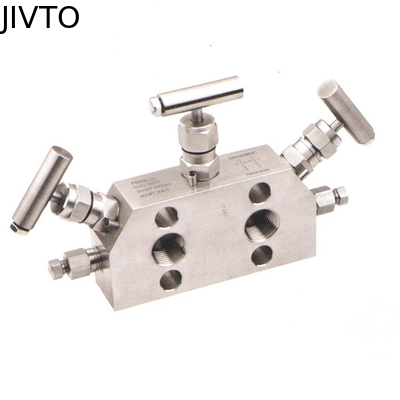

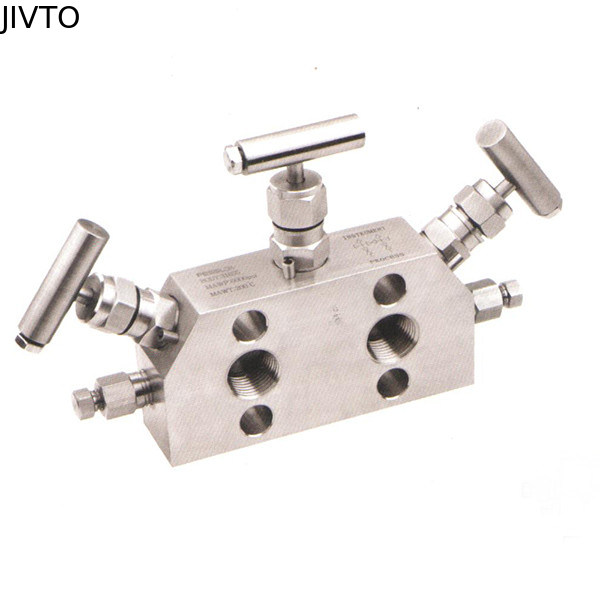

Instrument manifold, gauge valve, three-valve manifold, stainless steel, max. working pressure 6000 psi
Series valve manifolds are designed as two-valve manifolds for static pressure and liquid level.three -valve & five-valve are designed for differential pressure.
Three-valves contains an isolation valve and a balancing valve.
Features:
- Material: Stainless steel
- Max. working temperature: 200℃
- Max. working pressure gauge: 6000 psi
- Inlet / process: 1/2 female NPT
| Material | stainless steel |
| Max. working temperature | 200℃ |
| Max. working pressure | 6000 psi |
| Inlet/process | 1/2 female NPT |
| Outlet/instrument | Coplanar flange |
| Vent | 1/4 female NPT |
| Gasket/Packing | PTFE OR Graphite |
| Seat/seal material | PTFE OR Graphite |
