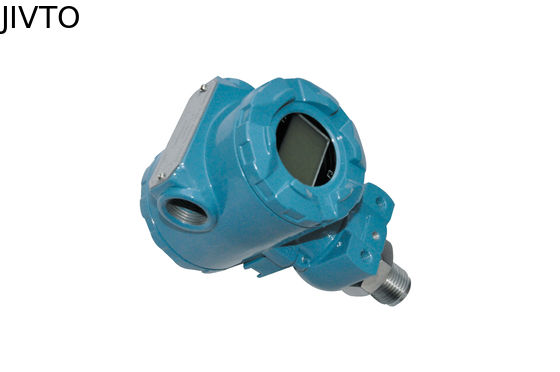

60000KPA 36VDC Differential Pressure Transmitter Level Measurement 1/2 BSP

Basic Information
Place of Origin: China
Model Number: JTPT-01
Minimum Order Quantity: 10 pcs
Price: Negotiable
Delivery Time: 20-30 work days
Payment Terms: T/T, L/C
Supply Ability: 20,000 pcs per month
Detail Information
Product Name: Diffused Silicon Pressure Transmitter Output: 4-20mA. DC Two Wire
Supply: 12-36V.DC
High Light:

60000KPA Differential Pressure Transmitter

,

36VDC Differential Pressure Transmitter

,

1/2 bsp differential pressure level measurement


Product Description

Diffused silicon pressure transmitter,0-20 mA,12-36V DC, LCD digital display indicator





It is widely used in chemical, electricity, petroleum etc.The smart pressure transmiters can be realized zero adjustment, range settings.





Features:

- Filled with silicone oil

- Housing material: aluminum

- Output: 4-20 mA

- Supply power: 12-36 V DC

- With LCD digital display indicator

- Accuracy: 0.1%









Product name diffused silicon pressure transmitter
Range 0-60000 Kpa
Accuracy 0.1%
Overload 120%
Fill fluid silicone oil
Isolating diaphragm material SS316 ,SS316L, Hastelloy , Monel , Tantalum
Housing material aluminum
Working temperature -25-75℃
Opitional 1 Analog type ( code E), intelligent type with Hart protocol ( Code S)
Opitional 2 with three-way manifold, five-way manifold
Opitional 3 G1/2, 1/2 NPT or made as request





60000KPA 36VDC Differential Pressure Transmitter Level Measurement 1/2 BSP 0
