| Place of Origin: | China |
|---|---|
| Model Number: | JTPT-04 |
| Minimum Order Quantity: | 10 pcs |
| Price: | Negotiable |
| Delivery Time: | 20-30 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20,000 pcs per month |
| Product Name: | Diffused Silicon Pressure Transmitter | Output: | 4-20mA. DC Two Wire |
|---|---|---|---|
| Supply: | 12-36V.DC | Range: | 0-100 Mbar |
| Diaphragm: | Stainless Steel | ||
| High Light: | 15mA differential pressure sensor,20VDC differential pressure sensor,1/2'' NPT negative pressure transmitter |
||

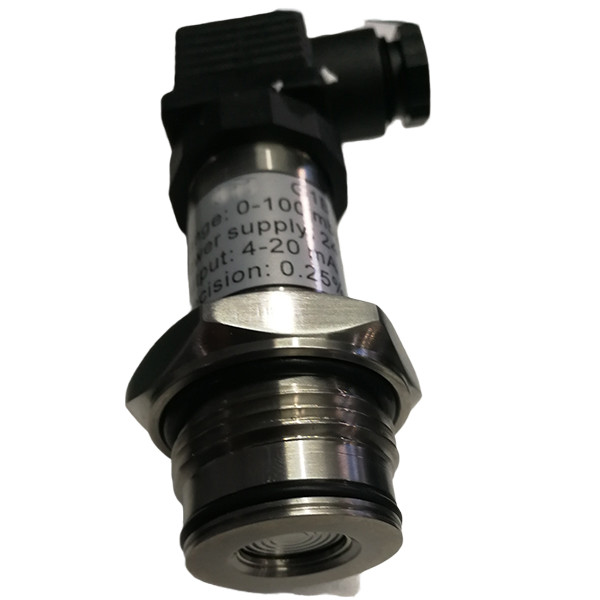

Diffused silicon pressure transmitter,0-20 mA,12-36V DC, LCD digital display indicator
This product is widely used for pressure measurement and control of petroleum, chemical-industry, metallurgy, power station and hydrology, etc.
Features:
- Filled with silicone oil
- Housing material: stainless steel
- Output: 4-20 mA
- Supply power: 12-36 V DC
- Range: 0-100 mbar
- G1/2 connection
- Protection grade: IP65
- Accuracy: 0.25%
| Product name | diffused silicon pressure transmitter |
| Range | 0-100 mbar |
| Accuracy | 0.25% |
| Overload | 120% |
| Fill fluid | silicone oil |
| Protection grade | IP65 |
| Pressure type | Gauge pressure,Absolute pressure |
| Working temperature | -25-75℃ |
| Impact time | 2 ms |
| Housing material | Stanless steel |
| Opitional 3 | G1/2, 1/2 NPT or made as request |
